Column Pipes & Fittings
Column Pipes & Fittings | Column Pipes & Fittings From Sarbadaa

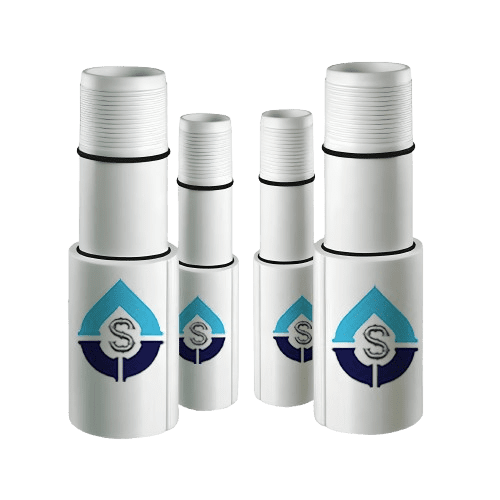

A column pipe is a vertical pipeline commonly used in industries such as water treatment, oil and gas, and construction. It serves as a conduit for transporting liquids, gases, or other materials from one elevation to another. In applications like deep well pumping systems, column pipes are essential for drawing water or fluids from underground sources. Typically made from durable materials such as steel or PVC, they are designed to withstand high pressure and environmental stresses. Column pipes play a crucial role in ensuring the efficient flow of resources across various operational levels.
Advantages of Column Pipes
In-Built Automatic Locking System
- In this, the coupler is fitted to the pipe through special automatic locking system to prevent thread slippage during assembly and dismantling process of pipe
- The advantage of this system is, it cannot be unthreaded and dismantled and provide rigid locking
- It also increases the life of the submersible pump
Square Threads
- The coupler and pipe joints have square threads machined using CNC machine to maintain accuracy for taking high load with no slippage of threads
- Due to this, it is very easy to assemble and dismantle column pipe as well as provide extra strength to the pipe
- It reduces the loosening of joints during ON/OFF of submersible pumpset
- This unique square thread provide sufficient grip and additional strength against tensile load
Bi-Axial Orientation
- Specially design Bi-Axial design tools in column pipe extrusion process to ensure the PVC molecular chain gets linear and diametrically oriented which gives higher impact strength to the pipes
Thick and Thin Portion of Pipe
- The technique for making column pipes thicker in the threading end to compensate for material due to threads. The residual thickness in the end part after removal of the same as barrel thickness, therefore the pipe strength remains the same
- This technique saves raw material consumption also provides much higher strength to the pipes
- This portion has been developed in order to absorb the full torque produced from motor, thus resulting in long life
Features of Column Pipes
- Made up of high quality virgin PVC Material
- Square threads of pipes are best design and manufactured in CNC machine in order to provide accuracy and quality
- Square threads gives a very high load holding capacity and it do not rust
- The "O" ring is made up of high efficient rubber provide leak proof joints
- The thick and thin portion of pipes has been developed to provide higher strength to pipes
- Rigid with high impact resistance
Applications of Column Pipes
- Suitable for rising water using submersible pumps in Borewell
- Suitable for Jet Pump for irrigation and domestic usage
- Excellent alternatives of MS, ERW, HDPE and SS Pipes
- Ideally suitable for Normal, Cold, Clean, Salty and sandy aggressive water
- Suitable for use as a movable pumping system
Properties of Column Pipes
- Odourless & Hygienic, so suitable for potable water supply
- High Izod impact and tensile strength
- High torque resistant
- 100% leak proof with high flow rate
- Economically satisfied as it is cost effective
- Minimum Frictional loss
- Light in weight hence handling, transportation and installation becomes much easier
- Non-corrosive, seamless, strong and resilient
- Rigid in nature with longer life
- 25% higher discharge compare to G.I. Pipes
- Low installation cost
Specifications of Column Pipes
- Product Name :- uPVC Column Pipes / Drop Pipes / Riser Pipes / Borehole Pipes
- Range :- 1" to 6" Outer Diameter (25mm to 150mm Nominal Diameter)
- Colour :- White
- Length :- Available in 3 & 6 Meters
- Types :- Tiny, Medium Deluxe Plus, Medium, Standard Deluxe, Standard Deluxe Plus, Standard, Heavy, Super Heavy
- Minimum Frictional loss
- Light in weight hence handling, transportation and installation becomes much easier
- Non-corrosive, seamless, strong and resilient
- Rigid in nature with longer life
- 25% higher discharge compare to G.I. Pipes
- Low installation cost
